MOTO-SKI TRACK AND CLEAT APPEARANCE DIFFERENCES
1964-1974
"If you lift the flap this is what you should see"
Please note that there can be variations depending upon production date so these are general guidelines.








1964 MODEL 100
1964 MODEL 101
This is a very tough year because these early tracks were often replaced with the latest track at any given time making identifying
"correct for 1964" a challenge.  Above are the two most plausible styles that should be on a '64.  The one on the left has very unique cleats
and rivits and is most likely what most '64s came with.  The one on the right either was a later production or the track was replaced with a 65 piece.

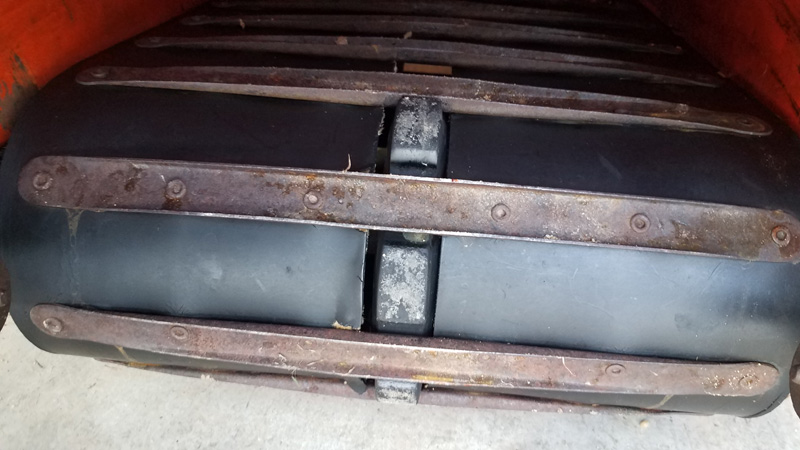

1965 MODEL 100 (39 cleats)
1965 MODEL 200 (47 cleats)
1966 CADET (39 cleats)
Note the steel cleats with tapered raised edges that are the same on each side.  Rubber banding has a smooth texture.




1966 CAPRI (39 cleats) and ZEPHYR (47 cleats)

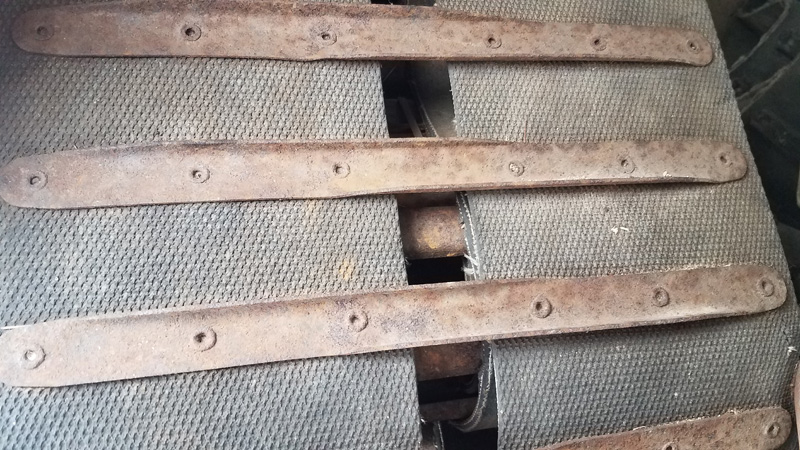

1967 CAPRI (39 cleats) and ZEPHYR (47 cleats)
1968 CADET (39 cleats)
Steel cleats with tapered raised edges that run 2/3 the length of the cleat.  The front edge is also raised opposite of the rear.
Rubber banding has a textured surface.

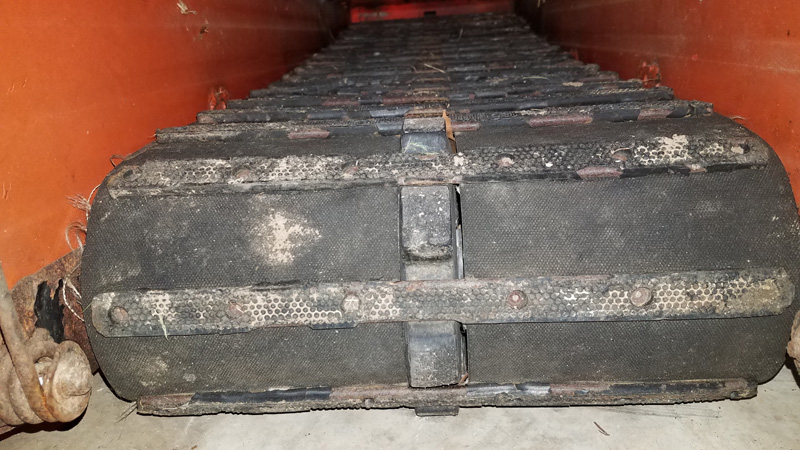

1968 CAPRI (39 cleats) and ZEPHYR (47 cleats)
Rubber coated rolled edge steel cleats.  The rubber coating has a raised "dimple" texture sort of like a basketball.






1968 MS-18
Rubber coated rolled edge steel cleats.  The rubber coating has a raised "dimple" texture sort of like a basketball.
Dual drive track with alternating short and long cleats both of which are rubber coated.






1969 MS-18
1970 MS-18
Rubber coated rolled edge steel cleats.  The long cleates are smooth with a raised center rib but the short cleats are bare steel.

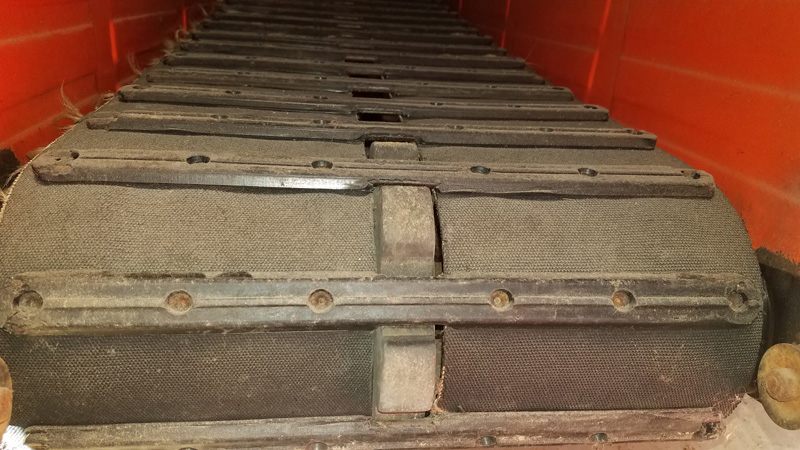

1969 CADET (39 cleats), CAPRI (39 cleats), ZEPHYR (47 cleats), SM (39 cleats)
1970 CADET (39 cleats), CAPRI (39 cleats), ZEPHYR (47 cleats), GRAND PRIX (39 cleats), SM (39 and 47cleats)
1971 CAPRI (39 cleats), ZEPHYR (47 cleats), GRAND PRIX (39 cleats)
1972 CADET (34 cleat), CAPRI (39 cleats), ZEPHYR 340 (47 cleats), ZEPHYR 440 (46 cleats)
1973-1975 CADET (34 cleats)
Rubber coated rolled edge steel cleats with a raised center rib.

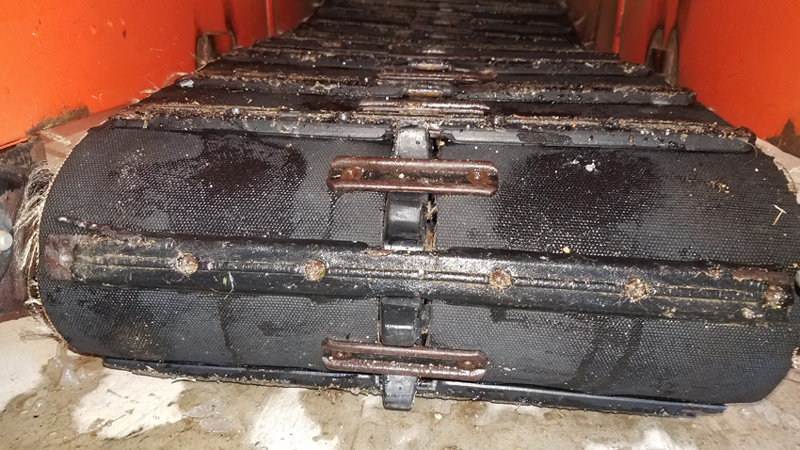

1970 MINI-SNO
1971 MINI-SNO
Normal 15" cleats alternating with short cleats like found on the 1969-70 MS-18s.






1971 MS-18
1972 MS-18
Center drive rubber coated rolled edge steel cleats with a raised center rib. These 18" tracks use 4 rivets per side where the 15"
used 3 rivits per side.

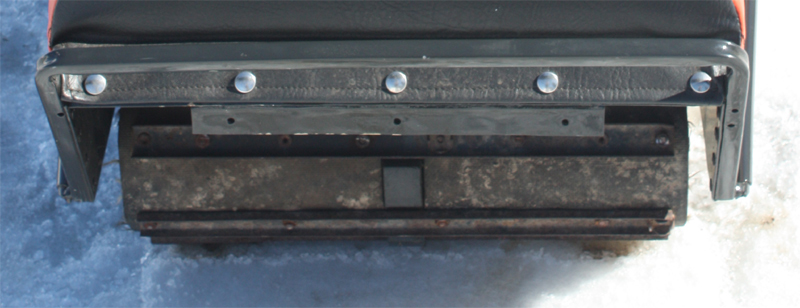

1971 BULLET
Center drive with steel cleats.








1972 GRAND PRIX (39 cleats)

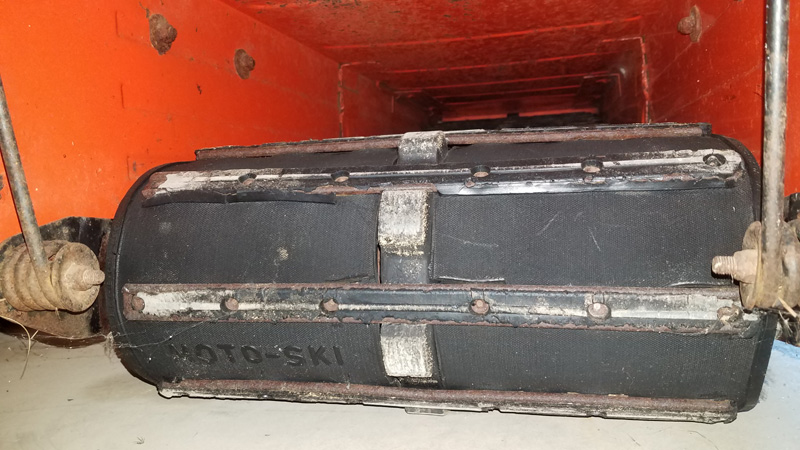

1973 CAPRI (39 cleats) and ZEPHYR (47 cleats)
1974 Capri (39 cleats)
1975 NUVIK 300
Rubber coated rolled edge steel cleates with a raised center rib.  These tracks have a moulded in raised portion on the outer
edge of each track band.  I will be finding a good photo of the slide rail option track showing round holes in the bands.

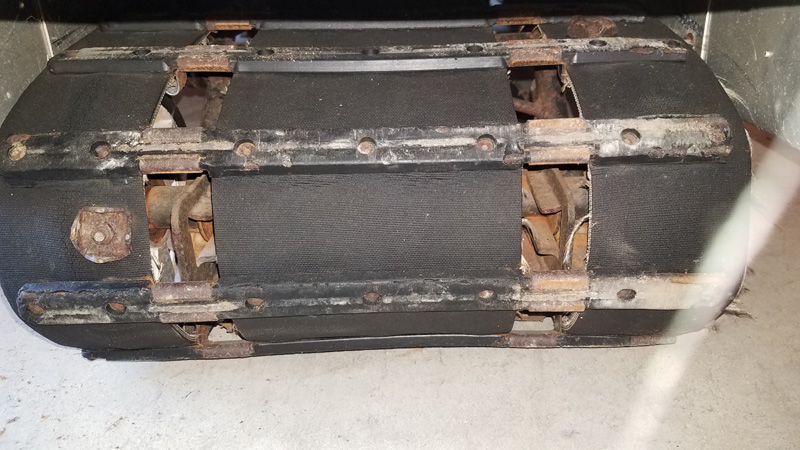

1973 F and S
1974 FUTURA, CHIMO, GRAND SPORT
Still gathering photos to differentiate any differences between the '74 models.
